When a customer opens their coolant expansion bottle and sees thick brown 'chocolate milkshake' sludge floating at the top—or oil dripping down the nearside of the engine block—their first fear is a blown cylinder head gasket (£1,800+ repair). Yet on BMW 2.0d (N47/B47) cars and Ford Transit 2.2 TDCi / Ford Ranger 2.2 & 3.2 TDCi commercials, 95% of oil-in-water cases are caused by a ruptured internal plate or perished barrier gasket inside the Oil Filter Housing & Water-Cooled Oil Cooler Assembly!
1. The Physics of Oil-to-Coolant Mixing: 4.5 Bar Oil Pressure vs 1.2 Bar Coolant Pressure
Inside both the BMW Oil Filter Housing (OEM 11428596283) and the Ford Puma 2.2 / 3.2 TDCi Oil Cooler (OEM 1829179 / BK2Q-6B624-CE / 1746665), engine oil at 4.0 to 5.0 bar circulates millimetres away from engine coolant at 1.1 to 1.4 bar. When the internal aluminium heat-exchanger brazed plates corrode or the figure-of-eight elastomer gasket splits, high-pressure oil is forced straight into the lower-pressure cooling system—filling the header tank with black oil while leaving the engine oil sump completely free of water!
2. UK Workshop Diagnostic Fault Codes, Symptoms & Root Causes
| Fault Code / Defect | On-Road / MOT Symptom | Root Cause & Permanent Workshop Fix |
|---|---|---|
| BMW 11428596283 (SKU: BD1199) | BMW 1, 2, 3, 4, 5 Series, X1, X3, X4, X5 | Cracked plastic oil filter housing flange or weeping cooler plate gasket. |
| Ford Transit 2.2 FWD 1829179 (SKU: BD1122) | Ford Transit MK7, MK8 & Custom 2.2 TDCi FWD (BK2Q-6B624-CE) | Internal cooler plate pin-holing pushing black diesel oil into the expansion bottle. |
| Ford Ranger 2.2 / 3.2 1746665 (SKU: BD1196) | Ford Ranger T6 2.2 & 3.2 TDCi RWD/4x4 (2011 Onwards) | Complete Oil Cooler, Filter Housing, Filter Element & Gasket Assembly. |
3. Verified OEM Part Number Cross-Reference & UK Fitment Guide
| OEM Reference | UK Vehicle Application | Component & Workshop Spec |
|---|---|---|
| BD1199 — 11428596283 / 11428583895 | BMW 1 Series F20, 2 Series, 3 Series F30/G20, 4 Series, 5 Series F10/G30, X3, X4 | Complete Oil Filter Housing with Integrated Oil Cooler, Filter & Gaskets |
| BD1122 — 1829179 / BK2Q-6B624-CE | Ford Transit MK7, MK8 & Custom 2.2 TDCi / Peugeot Boxer / Citroen Relay 2.2 HDi FWD | Upgraded Modified Design Engine Oil Cooler & Filter Housing Assembly |
| BD1196 — 1746665 / BK3Q-6B624-CB | Ford Ranger 2.2 & 3.2 TDCi (2011 Onwards) & Transit 2.2 RWD | Complete Oil Cooler & Filter Housing with Gasket & Filter |
🔩 Direct-Fit OEM-Spec Parts In Stock (Birmingham UK Warehouse)
✓ Same-Day Dispatch Before 6:00 PM UK
4. Step-by-Step UK Workshop Fitting Procedure & Torque Specs
- Drain Both Coolant and Engine Oil Before Removal: Drain the contaminated coolant from the lower radiator tap before unbolting the oil cooler from the block.
- Clean the Cylinder Block Ports Carefully: Wipe the oil and coolant ports on the side of the engine block with lint-free blue roll; ensure no old rubber gasket fragments remain stuck to the metal face.

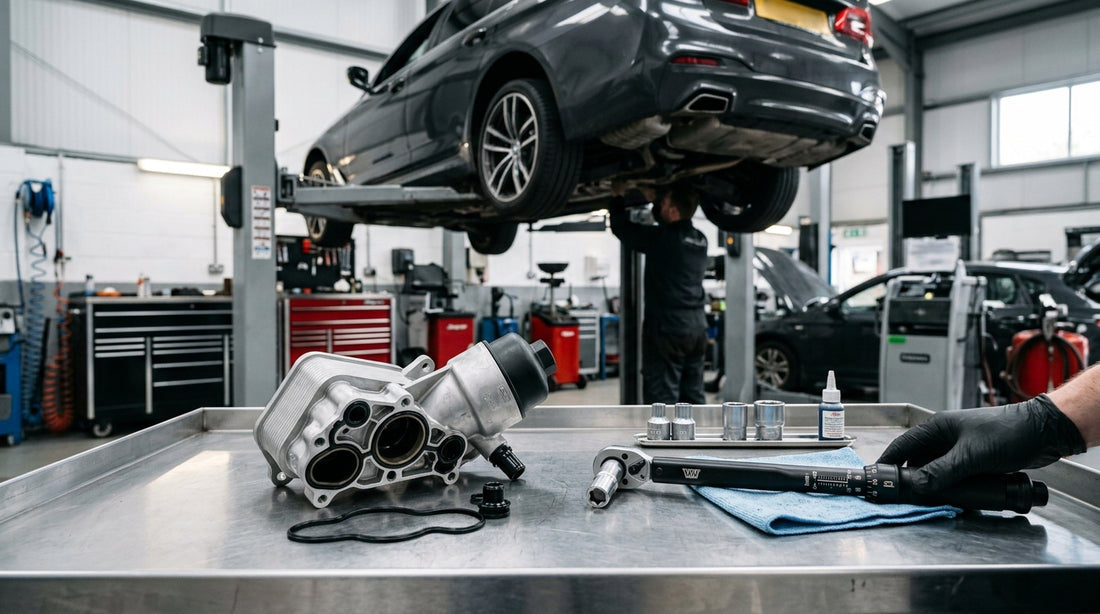

- Bolt On the New BuyDay Oil Cooler Assembly to Spec: Fit the new assembly (BD1199, BD1122, or BD1196) using the pre-installed gaskets and torque the mounting bolts evenly in a criss-cross pattern to 10–12 Nm.
- Flush the Cooling System Twice with Non-Foaming Degreaser: Fill the cooling system with warm water and an automotive oil-emulsifying radiator flush, run at fast idle until the 88°C thermostat opens, drain completely, and refill with fresh 50:50 OAT antifreeze.
5. Master Mechanic Q&A: UK Workshop & MOT Questions Answered
Q: Why is there engine oil in my Ford Transit 2.2 TDCi coolant tank but no water on the oil dipstick?
Dave Mercer (Master Tech): Because engine oil pressure (up to 5 bar) is much higher than cooling system pressure (1.2 bar), a perforated oil cooler plate (OEM 1829179) pushes oil out into the coolant rather than letting water into the sump.
Q: Should I replace the coolant hoses if oil has been in the cooling system for a long time?
Dave Mercer (Master Tech): Flushing with a dedicated automotive cooling-system degreaser removes oil film, but inspect the thermostat housing seal (1731770) and expansion tank cap—rubber components swollen by engine oil should be replaced.
